Rubber charging cable | Type 2 | max. 22 kW
Code: T2-3F-32AProduct detailed description
EVmotion.eu offers quality charging cables for all types of electric vehicles, hybrid vehicles and electric motors. These cables are the basis for fast and convenient charging at home and at public charging stations. If you're not sure about the compatibility with your electric car, use our Charging Guide.
Quality EV charging cable. New rubber cable - more durable, lighter.
- Mode 3 cable
- High protection and cable resistance
- IP54 - waterproof cable for indoor and outdoor charging
- Compatible with all Type 2
- Thin and lightweight rubber cable
- Dust proof and waterproof to IP54 rating (when mated)
- Fast charge - 22kW 32A
- Compatible with 16A and 32A public and home charge points
*A cable with the required length can be supplied. Please, let us know.
Additional parameters
| Category: | Type 2 | 3 phase | max. 32A - 22 kW |
|---|---|
| Weight: | 4 kg |
| Cable length: | 5 meters |
| Cable type: | Straight |
| Charging mode: | Mode 3 |
| Power supply: | 3 phase |
| Rated current: | 32 A |
| Operating voltage: | 400 V |
| Rated power: | 22 kW |
| Degree of protection: | IP54 |
| Operating temperature: | - 30°C ~ + 50°C |
| Cable: | 5x6,0mm² |

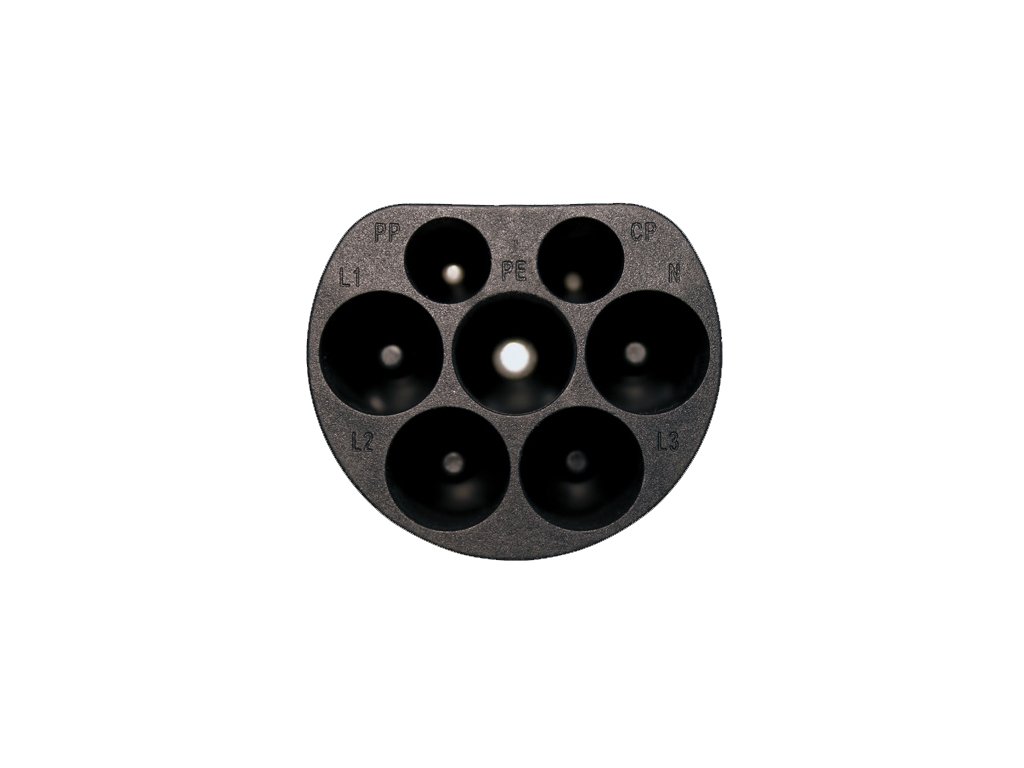

| Connector - Station: | Type 2 male |
| Connector - Car: | Type 2 female |
| Used: | Indoor / Outdoor |
