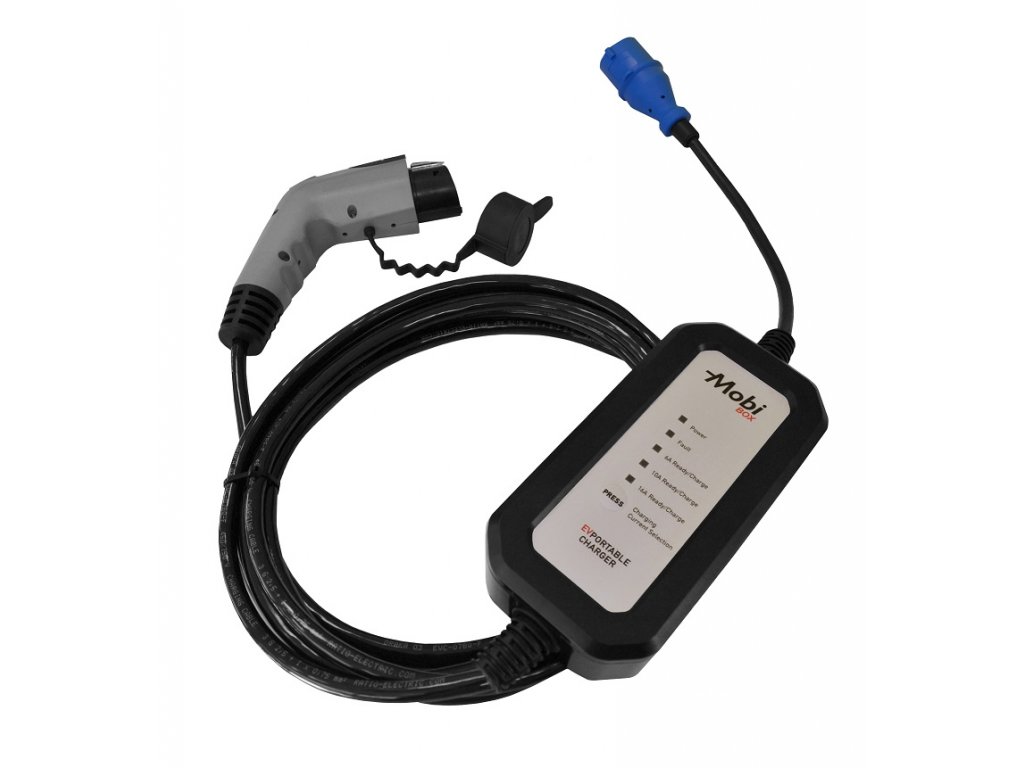

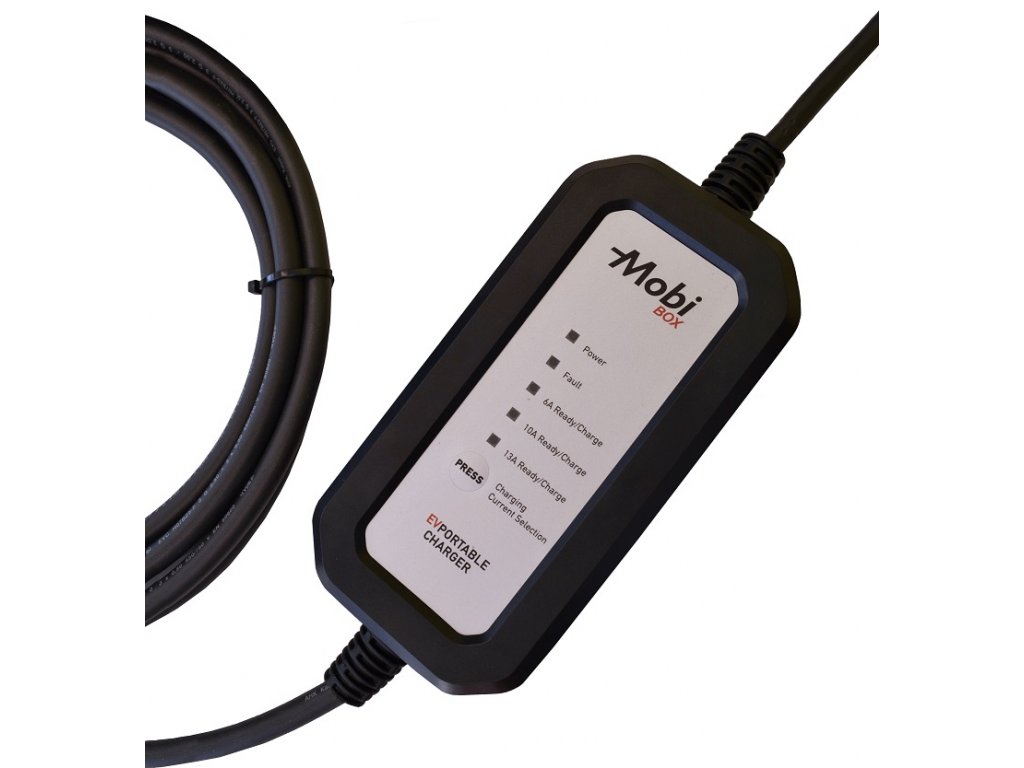

Mobi Box | Type 1 | 6-16A max. 3,7 kW
Code: 31313Product detailed description

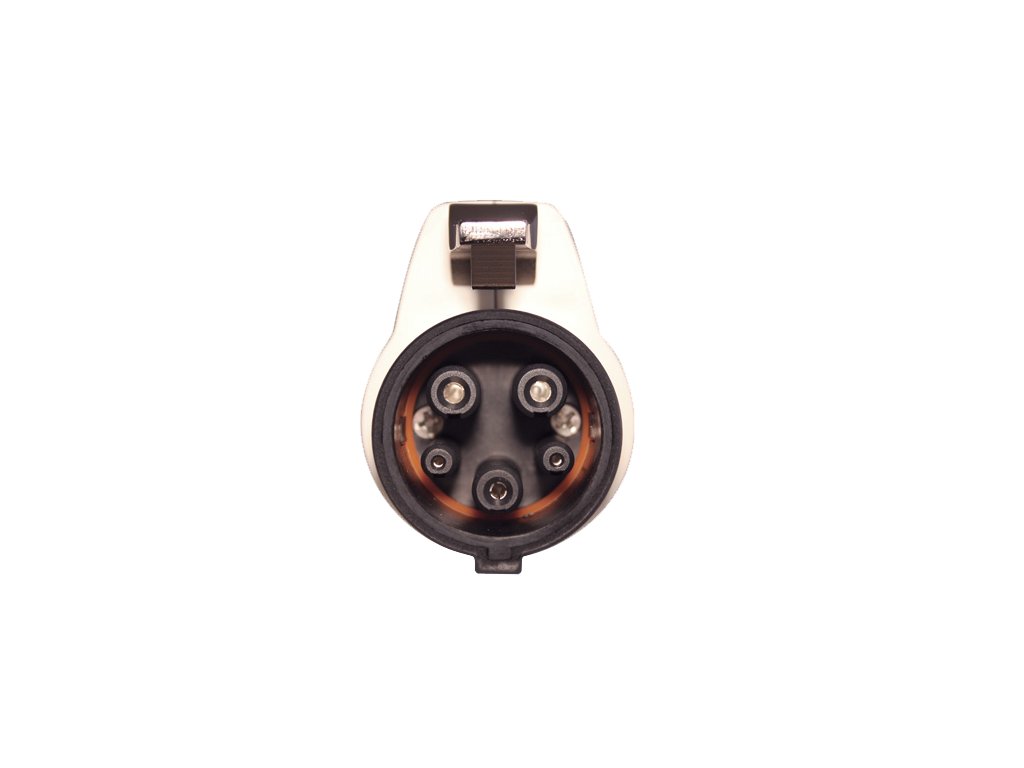

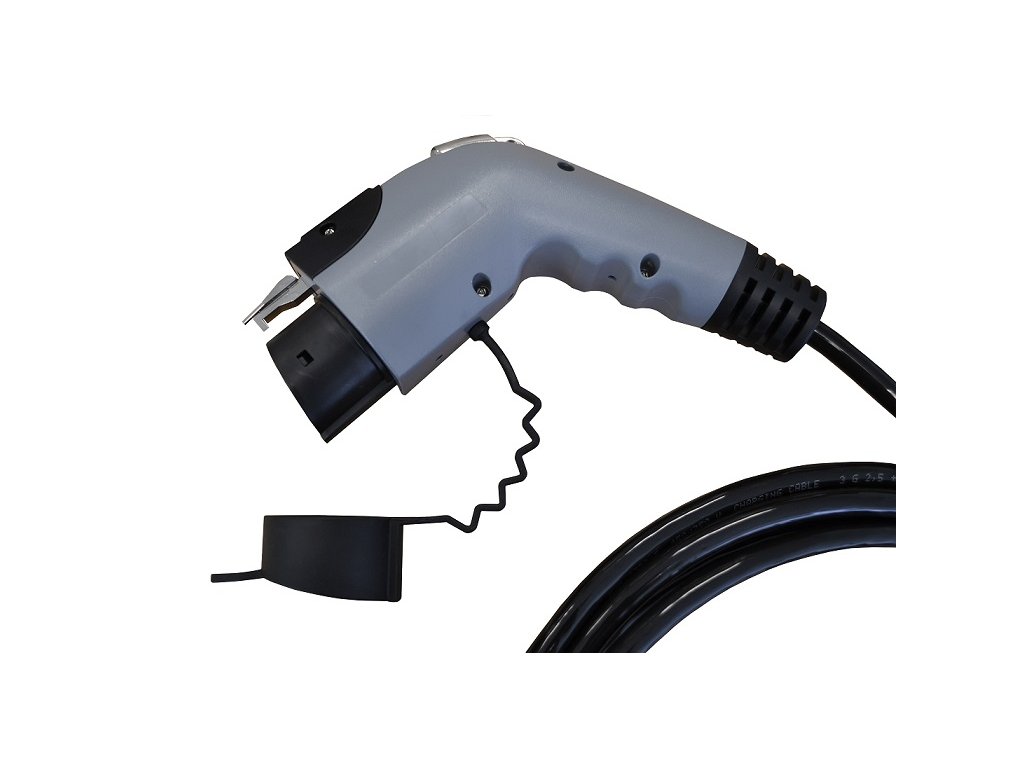

- Car connector Type 1 with Dekra type approval
- Housing thermoplastic material, waterproof (IP44)
- Earth leakage protection AC 30mA, DC 6mA
- Selectable charge current
- Under and overvoltage protection
- Overcurrent protection
- Temperature protection in the housing
- Earth wire protection
- Automatic restart feature
- High strength and cable resistance
- CE, TUV, UL certification
- Compatible with cars Type 1 / "Yazaki" / J1772
Additional parameters
| Category: | Portable chargers |
|---|---|
| Degree of protection: | IP44 |
| Rated max. power: | 3,7 kW |
| Station output: | Type 1 cable |
| Charging mode: | Mode 2 |
| Rated current: | 6 / 10 / 13 / 16A |
| Power supply: | 1 phase |
| Operating voltage: | 230V |
| Rated power: | 3,7 kW |
| RCD: | AC 30mA, DC 6mA |
| Degree of protection: | IP44 |
| Operating temperature: | - 25°C ~ + 50°C |
| Cable: | 3G2,50mm² + 3x0,50mm² |
| Connector - Car: | Type 1 "Yazaki" |
| Connector - Station: | CEE |
| Used: | Indoor / Outdoor |
