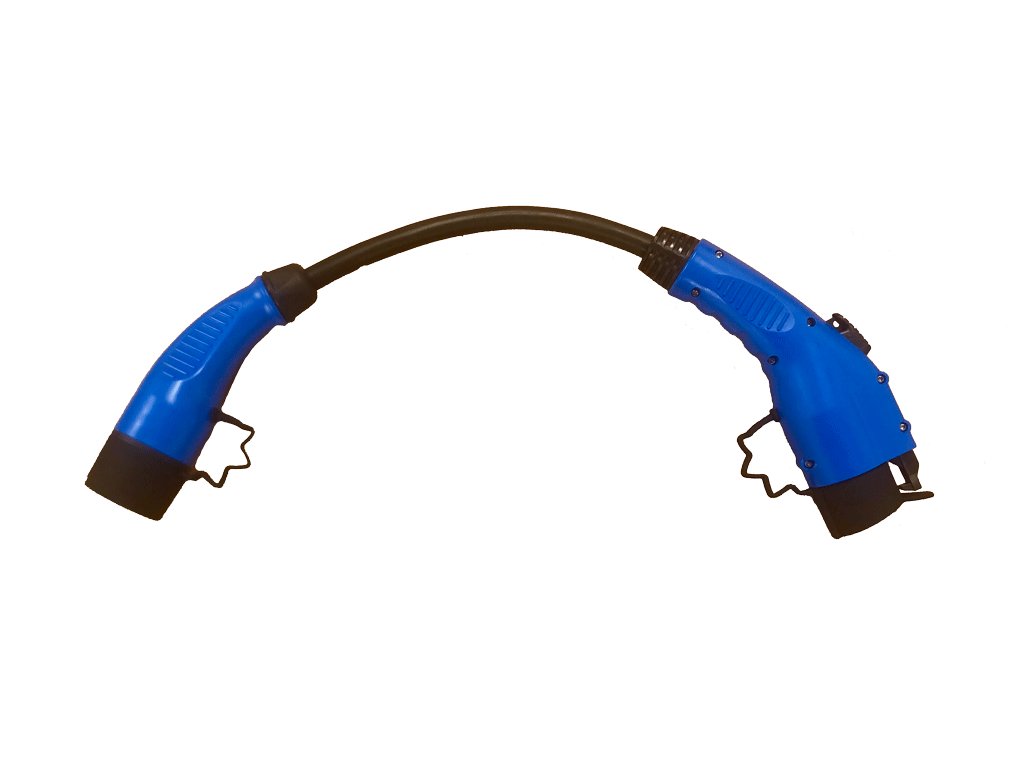

EV Adapter | Type 2 male - Type 1

Code: T2TT1
115 € 139,15 € incl. VAT
In stock

Mode 3 cable to connect charging station with connector Type 1 with a car that has a Type 2 connector. The cable has 6mm wires for charging with a maximum current of 32A / 7.4kW.

Detailed information

Product detailed description

Mode 3 cable to connect charging station with connector Type 1 with a car that has a Type 2 connector. The cable has 6mm wires for charging with a maximum current of 32A / 7.4kW.

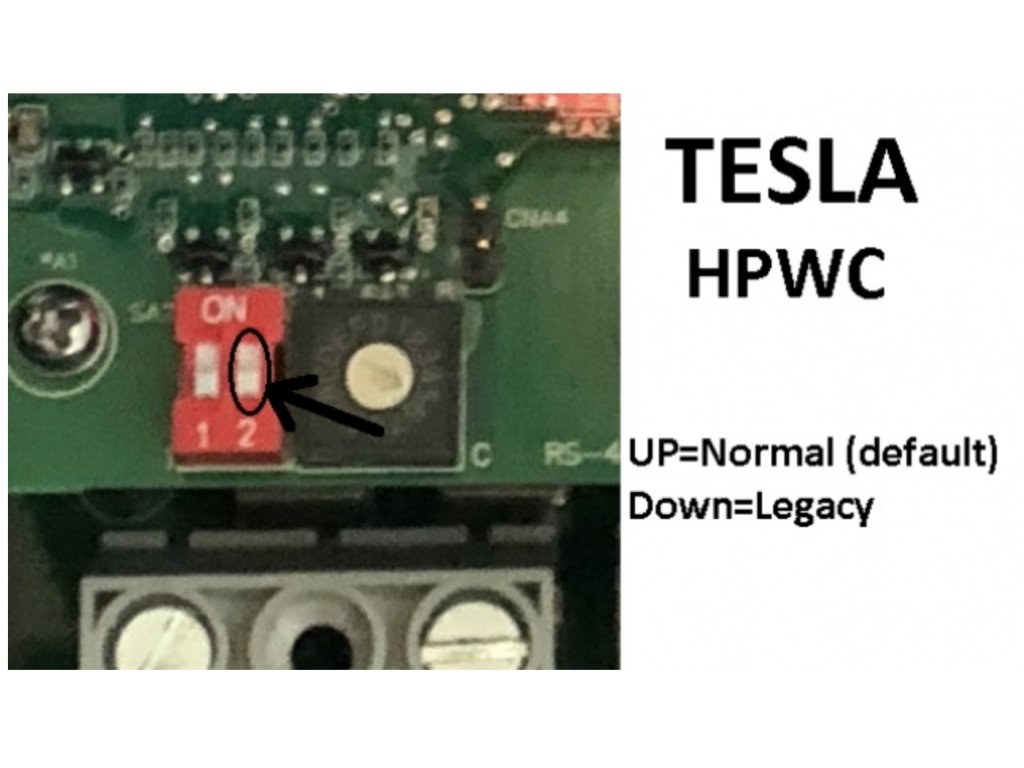

CAUTION: Does not work in conjunction with the Tesla WallBox, which is set by default. Legacy mode set up is needed.



Mode 3 cable to connect charging stand with IEC62196-2 connector, so called Type2 with a car that has a J1772 connector, called Type1.

Cable has 6mm wires for max charging 32A (7360W). Rubber cable, outer diameter 16mm.

Compatible with:

  • Nissan Leaf, Nissan eNV200
  • Kia Soul EV
  • Citroen C-Zero, Peugeot iOn
  • Mitsubishi i-MiEV, Mitsubishi Outlander
  • Ford Focus, Ford C-MAX
  • Opel Ampera, Chevrolet Volt
  • Fiat 500e
  • and more.....



Additional parameters

Category: Adapters
Weight: 2 kg
Input plug type: Type 2 | male
Output plug type: Type 1
Phase: 1 phase
Rated max. current: max. 32 A
Voltage: 230 V
Rated power: max. 7,4 kW
Housing: IP54
Cable length: 0,25 meter
Working temperature: - 40°C ~ + 75°C
Cable: 3x6,00mm2 + 1x0,75mm2
Usage: Inner / Outdoor
