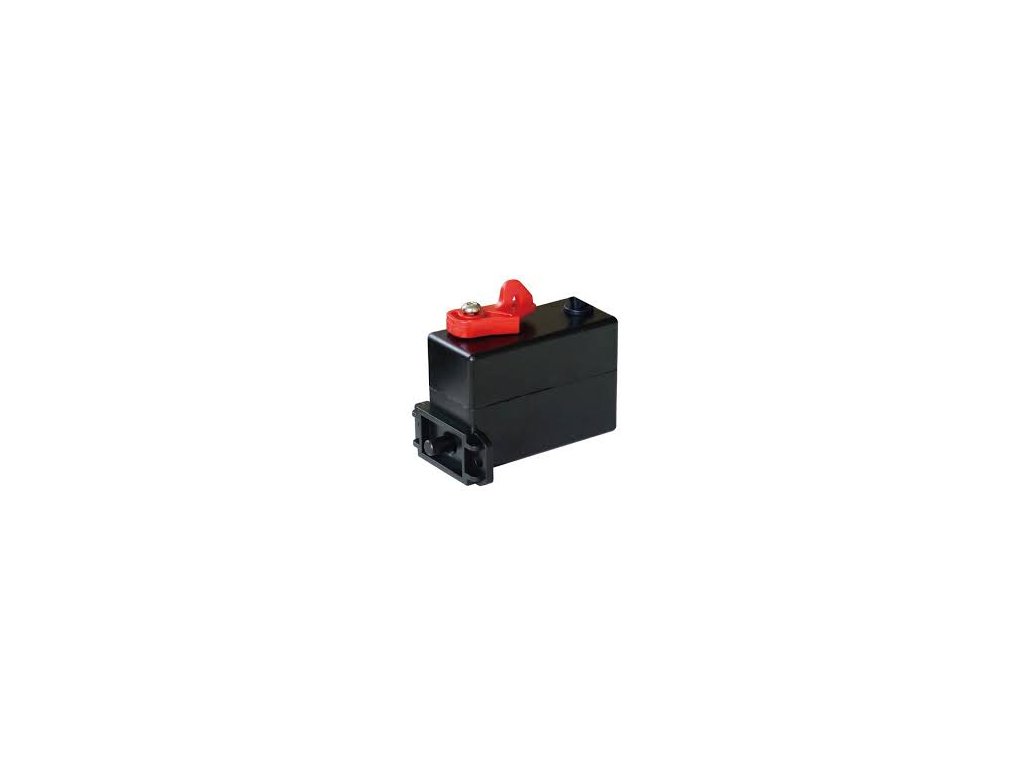

Locking actuator for sockets Type 2

Code: 6018
26 € 31,46 € incl. VAT
Sold out

Locking drives are used to trap the charging cable in the socket. It prevents the cable from being pulled out while the electric car is charging.

Current: 3A
Voltage: 12V
Operating voltage range: 12/24V DC
Maximum voltage: 1000V
Duty cycle: 5% ED activation <200ms, max 3 seconds
Insulation Class: E (CLASS)
Operating temperature: -30°C ~ +50°C
Housing material: thermoplastic, flammability class UL94 HB
Mechanical life: duty cycle > 50000 times



Detailed information

Product detailed description

Locking drives are used to trap the charging cable in the socket. It prevents the cable from being pulled out while the electric car is charging.

Current: 3A
Voltage: 12V
Operating voltage range: 12/24V DC
Maximum voltage: 1000V
Duty cycle: 5% ED activation <200ms, max 3 seconds
Insulation Class: E (CLASS)
Operating temperature: -30°C ~ +50°C
Housing material: thermoplastic, flammability class UL94 HB
Mechanical life: duty cycle > 50000 times

Cable Specifications:

  • 3 x 0.25 mm2

In the event of a power failure and interruption of the electric vehicle charging, the locking drive is unlocked manually.
